This popular range of spacers is used for all types of applications on site or in the pre-cast concrete yard. Universal spacers clips to steel reinforcement. Can be used for slab reinforcement, for walls, columns as well as pre-cast. Suitable for light reinforcing applications. Does not fall over as clipping does not release from steel.
Product No. | Concrete Cover (mm) | Bar Diam. (mm) |
2010 | 10 | 4 - 16 |
2015 | 15 | 4 - 16 |
2020 | 20 | 4 - 16 |
2025 | 25 | 4 - 16 |
2030 | 30 | 4 - 16 |
2035 | 35 | 4 - 16 |
2040 | 40 | 4 - 16 |
2050 | 50 | 4 - 16 |

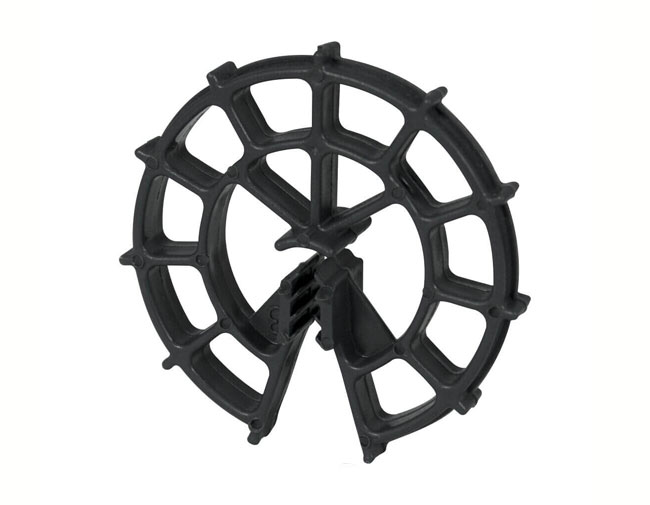

Mainly used for vertical steel reinforcements like walls or columns. Circular Spacers gives 360° cover to reinforcement. Clip design facilitates different steel diameters. Open structure of circular spacer prevents voids in concrete and minimizes form work contact. Moisture does not penetrate to reinforcement if used according to standard practice. Unbreakable plastic.
Product No. | Concrete Cover (mm) | Bar Diam. (mm) | Overall Diam. (mm) |
2212 | 12 | 4 - 10 | 30 |
2215 | 15 | 4 - 12 | 40 |
2220 | 20 | 4 - 12 | 48 |
2225 | 25 | 4 - 16 | 58 |
2230 | 30 | 4 - 16 | 68 |
2240 | 40 | 6 - 16 | 87 |
2250 | 50 | 6 - 16 | 106 |
2260 | 60 | 6 - 16 | 140 |
2275 | 75 | 6 - 16 | 160 |
Chair spacers are used for horizontal reinforcement such as suspended slabs, beams, etc. Good stability. Concave seat accommodates steel diameter of 6-40mm. Open structure of Chair spacer does not obstruct concrete flow. Minimum form work contact. Well developed and widely used for heavier steel reinforcing.
* Bigger sizes are made with a base to suit soft supporting material or soft foundations, such as sand, etc.
Product No. | Concrete Cover (mm) | Bar Diam. (mm) |
2115 | 15 | 6 - 40 |
2120 | 20 | 6 - 40 |
2125 | 25 | 6 - 40 |
2130 | 30 | 6 - 40 |
2135 | 35 | 6 - 40 |
2140 | 40 | 6 - 40 |
2150 | 50 | 6 - 40 |
*2160 | 60 | 6 - 40 |
*2170 | 70 | 6 - 40 |
*2180 | 80 | 6 - 40 |

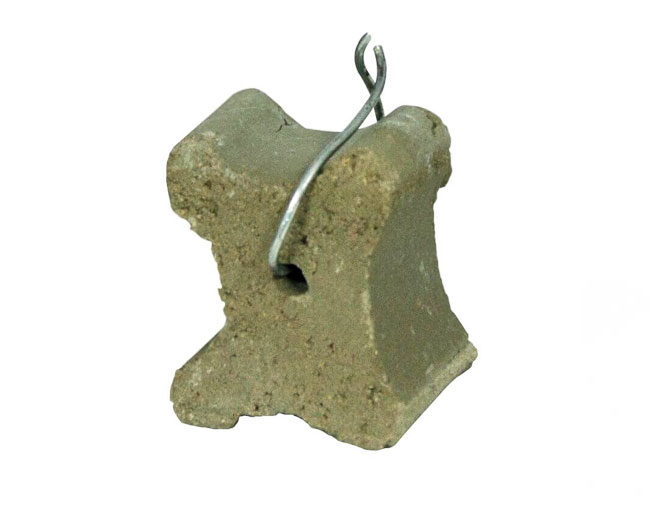

Fibre Cement Spacer with multiple covers for horizontal or vertical reinforcing.
Product No. | Cover | Width | Reinforcing Dia. | Quantity per Bag | Weight per Bag |
2978 | 20/25/30 mm | 25 mm | 6 - 25 mm | 500 | 22 Kg |
2979 | 35/40/50 mm | 25 mm | 6 - 25 mm | 250 | 26 Kg |
Plastic tubing replaces more expensive materials. Used as ferrule tubing to facilitate recovery of expensive thru ties. Supplied in 3m lengths. For correct I.D. of ferrule tubing required, please check I.D. of cone to be used. I.D. of ferrule tubing to be at least 1mm bigger than thru ties.
For correct I.D. of FERRULE TUBING required, please check I.D. of cone to be used.
I.D. of FERRULE TUBING to be at least 1mm bigger than thru ties.
Product No. | ID (mm) | O.D (mm) |
3017 | 17 | 20 |
3022 | 22 | 25 |
To be attached to each end of Ferrule Tubing.
Can easily be extracted from concrete structure for re-use.

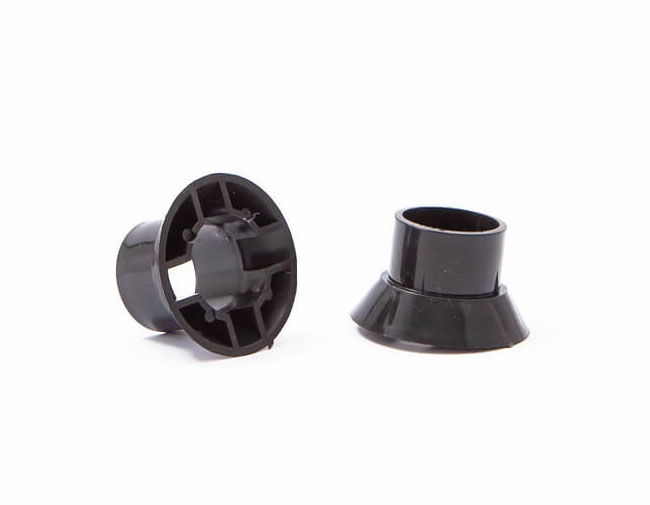

Joluka Push-On Cone form a chamfered recess in concrete structures for ease of subsequent grouting. They also prevent grout penetrating into Ferrule Tubing during casting of concrete.
Product No. | O.D | ID | Length of Cone Section |
3117 | 17 mm | 12 mm | 10 mm |
3121 | 22 mm | 18 mm | 20 mm |
3122 | 22 mm | 18 mm | 10 mm |

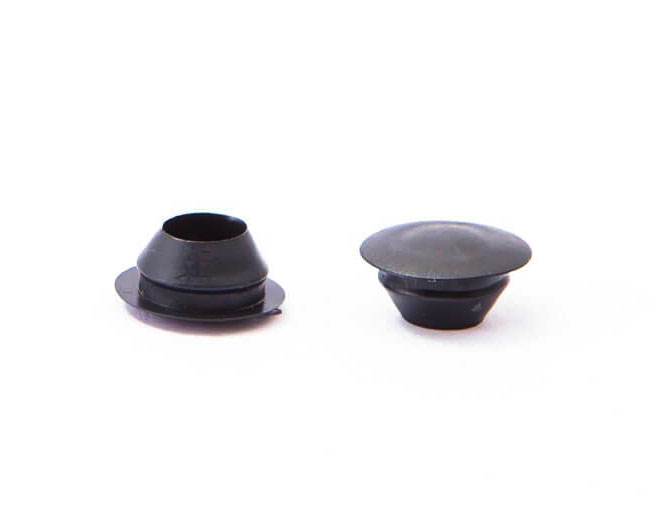

Used for closing Ferrule Tie holes in steel or timber shutters. Available in various sizes. Inexpensive and robust.
Product No. | Shutter Hole dia. (mm) |
8012 | 14 |
8016 | 16 |
8018 | 18 |
8020 | 20 - 25 |
8021 | 21 |
8025 | 25 |

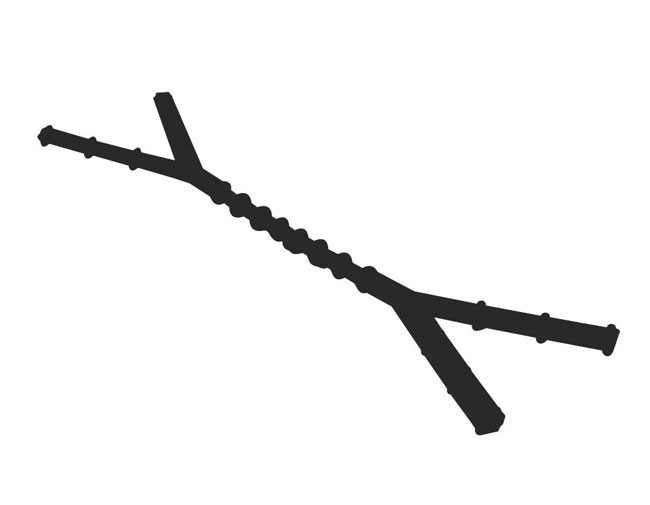

Re-usable Plastic Corner Fillet.
Used for chamfering corners of: beams, columns, slabs, pre-cast concrete, etc.
Applications:
* Mainly used for timber shutters - attach by nailing to shutter.
* For steel shutters - attach with contact adhesive or by means of screwing.
* Can be bent and used for curves and round structures like resevoirs.
Product No. | a (mm) | b (mm) | c (mm) |
1010 | 10 | 10 | 14 |
1015 | 15 | 15 | 21 |
1020 | 20 | 20 | 28 |
1025 | 25 | 25 | 35 |
1040 | 40 | 40 | 56 |

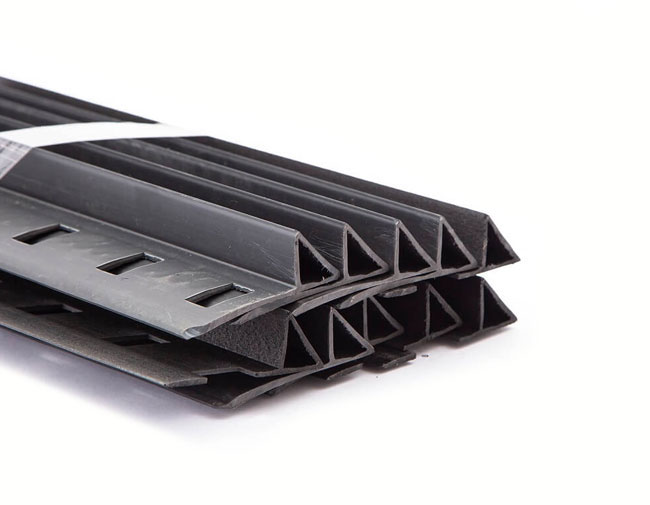

50mm lip of PLASTI-CORNER is slotted as per steel shuttering to accept clip and wedge for automatic attaching.
When dismantling formwork, PLASTI-CORNER comes off automatically and is ready for next use.
Advantages:
* Durable Corner Fillet.
* Labour saving.
* Reusable several times.
* No hassles as it gets assembled immediately with shuttering.
Product No. | a (mm) | b (mm) | c (mm) | d (mm) | Slotting |
1215 | 15 | 15 | 17 | 50 | metric |
1220 | 20 | 20 | 28 | 50 | metric |
1225 | 25 | 25 | 35 | 50 | metric |
1255 | 25 | 25 | 35 | 50 | PMI |
A mushroom shaped cap for attaching to dangerous exposed, reinforcing ends.
Advantages: * Clearly visible. * Eliminates accidents on the job. * 2 sizes cover most steel diameters. * Attaches firmly to the reinforcing bars.
Product No. | Size (mm) | Suitable for Steel Dia. (mm) |
3323 | 16 | 8 - 16 |
3324 | 32 | 16 - 32 |
3325 | 50 | 32 - 50 |

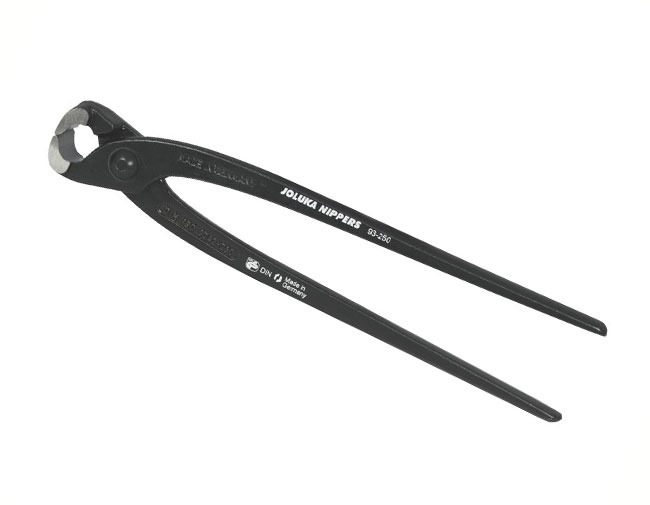

The Joluka high leverage concrete nippers offer substantially higher cutting performance as well as a damping of the cutting stroke after cutting the binding wire - two valuable ergonomical advantages for the user.
If you would like to twist and cut wire in one operation, then the Joluka concrete nippers are the ones for you. They are fast, reliable and economical and will make light work of the toughest of job applications.
With their very slim shape, the Joluka concrete nippers are ideal for tying submerged positioned steel rods, making these nippers very handy to have at all times.
Joluka nippers have particularly high cutting capacity with minimum effort due to their optimum transmission ratio. High damping of the cutting stroke after cutting the binding wire reduces strain on tendons and muscles.
These Joluka concrete nippers are made up from high-grade special tool steel, forged and then oil-hardened for reliability and durability. They have long handles for added torque and high leverage.
Joluka Concrete Nippers are manufactured in Germany, so the highest quality is guaranteed.
Product No. | Lenght (mm) | Medium to Hard Steel Density | Hard Steel Density |
2914 | 250 | 3,5 | 2,0 |
Applications:

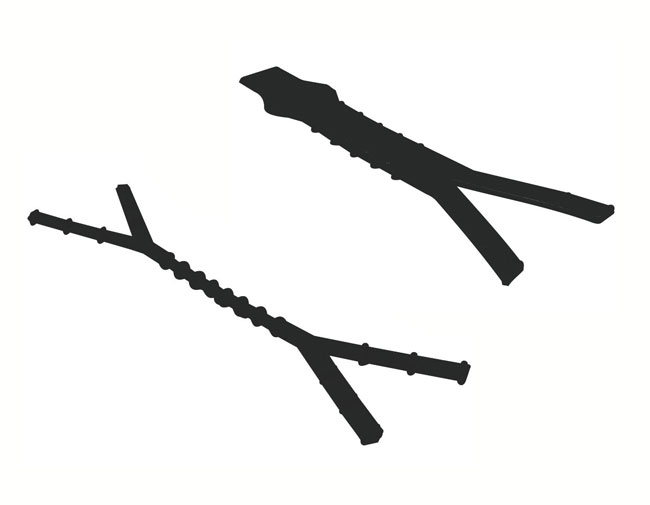

* Mainly used for steel shutter – lip to be wedged between angle iron and shutter panel for automatic attaching.
* For timber shutter, lip of PLASTI-CORNER is used for nailing, which eliminates damage and visual marks of nails on concrete.
* PLASTI-CORNER With Wedging Lip can be removed from sutters when dismantling and is then ready for re-use.
* Can be bent like plain PLASTI-CORNER.
Product No. | a (mm) | b (mm) | c (mm) | d (mm) |
1110 | 10 | 10 | 14 | 13 |
1115 | 15 | 15 | 21 | 13 |
1120 | 20 | 20 | 28 | 13 |
1125 | 25 | 25 | 35 | 13 |
This popular range of spacers is used for all types of applications on site or in the pre-cast concrete yard. Universal spacers clips to steel reinforcement. Can be used for slab reinforcement, for walls, columns as well as pre-cast. Suitable for light reinforcing applications. Does not fall over as clipping does not release from steel.
Product No. | Concrete Cover (mm) | Bar Diam. (mm) |
2010 | 10 | 4 - 16 |
2015 | 15 | 4 - 16 |
2020 | 20 | 4 - 16 |
2025 | 25 | 4 - 16 |
2030 | 30 | 4 - 16 |
2035 | 35 | 4 - 16 |
2040 | 40 | 4 - 16 |
2050 | 50 | 4 - 16 |
Mainly used for vertical steel reinforcements like walls or columns. Circular Spacers gives 360° cover to reinforcement. Clip design facilitates different steel diameters. Open structure of circular spacer prevents voids in concrete and minimizes form work contact. Moisture does not penetrate to reinforcement if used according to standard practice. Unbreakable plastic.
Product No. | Concrete Cover (mm) | Bar Diam. (mm) | Overall Diam. (mm) |
2212 | 12 | 4 - 10 | 30 |
2215 | 15 | 4 - 12 | 40 |
2220 | 20 | 4 - 12 | 48 |
2225 | 25 | 4 - 16 | 58 |
2230 | 30 | 4 - 16 | 68 |
2240 | 40 | 6 - 16 | 87 |
2250 | 50 | 6 - 16 | 106 |
2260 | 60 | 6 - 16 | 140 |
2275 | 75 | 6 - 16 | 160 |

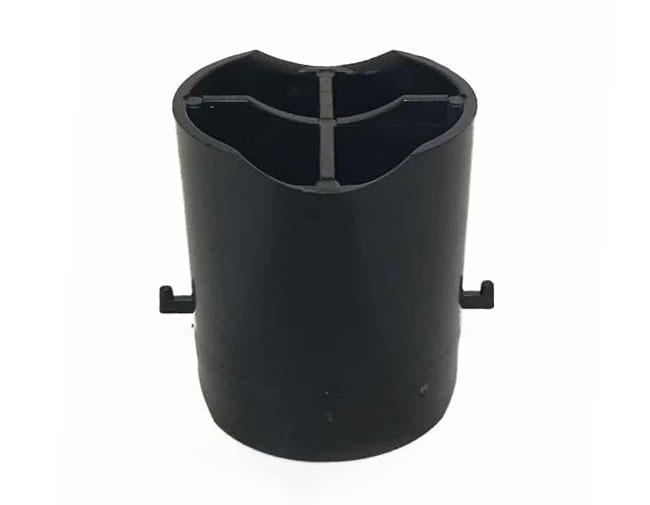

Chair spacers are used for horizontal reinforcement such as suspended slabs, beams, etc. Good stability. Concave seat accommodates steel diameter of 6-40mm. Open structure of Chair spacer does not obstruct concrete flow. Minimum form work contact. Well developed and widely used for heavier steel reinforcing.
* Bigger sizes are made with a base to suit soft supporting material or soft foundations, such as sand, etc.
Product No. | Concrete Cover (mm) | Bar Diam. (mm) |
2115 | 15 | 6 - 40 |
2120 | 20 | 6 - 40 |
2125 | 25 | 6 - 40 |
2130 | 30 | 6 - 40 |
2135 | 35 | 6 - 40 |
2140 | 40 | 6 - 40 |
2150 | 50 | 6 - 40 |
*2160 | 60 | 6 - 40 |
*2170 | 70 | 6 - 40 |
*2180 | 80 | 6 - 40 |
Fibre Cement Spacer with multiple covers for horizontal or vertical reinforcing.
Plastic tubing replaces more expensive materials. Used as ferrule tubing to facilitate recovery of expensive thru ties. Supplied in 3m lengths. For correct I.D. of ferrule tubing required, please check I.D. of cone to be used. I.D. of ferrule tubing to be at least 1mm bigger than thru ties.
For correct I.D. of FERRULE TUBING required, please check I.D. of cone to be used.
I.D. of FERRULE TUBING to be at least 1mm bigger than thru ties.
Product No. | ID (mm) | O.D (mm) |
3017 | 17 | 20 |
3022 | 22 | 25 |
To be attached to each end of Ferrule Tubing.
Can easily be extracted from concrete structure for re-use.
Joluka Push-On Cone form a chamfered recess in concrete structures for ease of subsequent grouting. They also prevent grout penetrating into Ferrule Tubing during casting of concrete.
Product No. | O.D | ID | Length of Cone Section |
3117 | 17 mm | 12 mm | 10 mm |
3121 | 22 mm | 18 mm | 20 mm |
3122 | 22 mm | 18 mm | 10 mm |

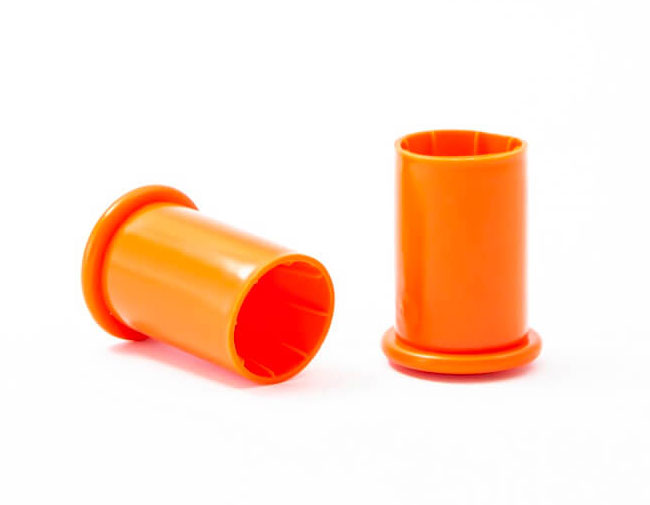

Used for closing Ferrule Tie holes in steel or timber shutters. Available in various sizes. Inexpensive and robust.
Product No. | Shutter Hole dia. (mm) |
8012 | 14 |
8016 | 16 |
8018 | 18 |
8020 | 20 - 25 |
8021 | 21 |
8025 | 25 |

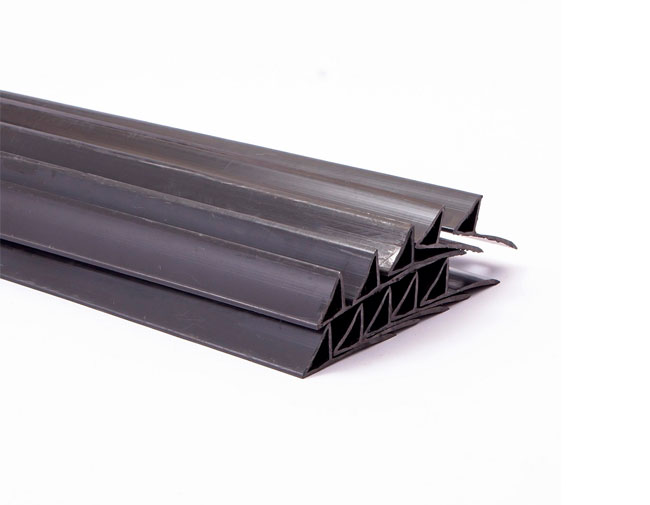

Re-usable Plastic Corner Fillet.
